PS-K conic lead impression block is used to determine position of a fish in the pipe string, and borehole obstructions during remediation in oil, gas and exploratory wells.

Design

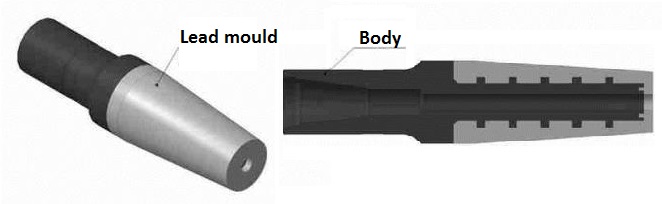

The conic lead impression block consists of a body molded with lead. The mold has conical form. The upper part of the body has thread to connect to the string. The impression block has a center watercourse for circulation. The block is made up on the pipe string and run into the wellbore. Due to lead plasticity, obstruction leaves an impression on the block`s soft material.

Images and Dimensions
Technical data
To cart Code OD, in Minimal D of cone,
in
Watercourse OD, in Length, ft Connection,
API
Weight, lb
PS-41K 1-5/8 9/16 - 0.89 SH-19 4.63
PS-45K 1-3/4 5/8 - 0.92 SH-19 5.51
PS-54K 2-1/8 1-1/8 - 1.07 NC 13 9.7
PS-57K 2-1/4 1-3/16 3/16 1.07 NC 13 10.14
PS-70K 2-3/4 1-3/16 3/16 1.15 NC 13 14.11
PS-89K 3-1/2 1-13/16 3/16 1.39 2-3/8 Reg 35.72
PS-98K 3-7/8 2.0 3/16 1.48 2-7/8 Reg 47.63
PS-105K 4-1/8 2-1/16 3/8 1,64 2-7/8 Reg 57.77
PS-121K 4-3/4 2-3/16 3/8 1,64 2-7/8 Reg 69.68
PS-140K 5-1/2 2-1/2 3/8 1.64 3-1/2 Reg 88.2
PS-203K 8.0 3-9/16 1.0 2.13 4-1/2 Reg 241.01
PS-216K 8-1/2 3-15/16 1.0 2.13 4-1/2 Reg 266.8
PS-292K 11-1/2 5-1/8 1-1/2 2.62 NC 50 543.31
PS-299K 11-3/9 5-1/8 1-1/2 2.62 NC 50 560.9
You can specify the size of an item on the checkout page.
