Application

FTL junk mill with cutlip guide is designed to engage and mill metal tubulars (tubing, rods) with circulation through ports in the mill body. It can be also used as a prerun to die collars, washover mills and overshots.

Design

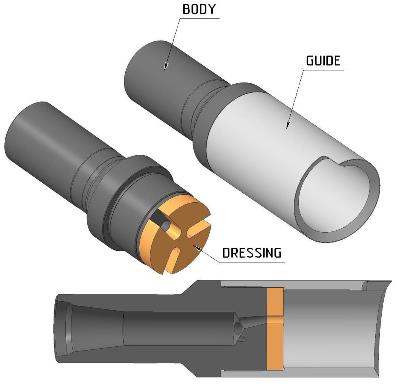

The junk mill consists of a body and flat cutting-crushing braze of tungsten carbide. It has thread connection at the upper end of the body, and circulation ports and relevant watercourses for better cooling and more efficient removal of cuttings at the lower end. The guide, thread connected to the body of the junk mill, withdraws (deflects) the fish away from the string walls and enables directionally stable cutting action.

Images and Dimensions
Technical data
To cart Code Washing channel diameter, in OD, in Total length,
ft
Compatible
API connection
Thickness of dressing, in
X-56 0.39 2.2 0.46 З-33 0.59
X-80 0.47 3.17 0.52 2-3/8 Reg 0.79
X-90 0.47 3.54 1.31 2-3/8 Reg 0.79
X-102 0.47 4.02 1.31 2-3/8 Reg 0.79
X-112 0.63 4.41 1.31 2-7/8 Reg 0.79
X-114 0.63 4.5 1.31 2-7/8 Reg 0.79
X-117 0.63 4.5 1.31 2-7/8 Reg 0.79
X-118 0.63 4.65 1.31 2-7/8 Reg 0.79
X-120 0.63 4.72 1.31 2-7/8 Reg 0.79
X-121 0.63 4.75 1.31 2-7/8 Reg 0.79
X-122 0.63 4.81 1.31 2-7/8 Reg 0.79
X-124 0.63 4.87 1.31 2-7/8 Reg 0.79
X-127 0.63 5.0 1.31 2-7/8 Reg 0.79
X-130 0.63 5.13 1.31 2-7/8 Reg 0.79
X-133 0.63 5.25 1.31 2-7/8 Reg 0.79
X-136 0.63 5.37 1.31 3-1/2 Reg 0.79
X-140 0.79 5.5 1.31 3-1/2 Reg 0.79
X-143 0.79 5.63 1.31 3-1/2 Reg 0.79
X-146 0.79 5.75 1.31 3-1/2 Reg 0.79
X-149 0.79 5.87 1.31 3-1/2 Reg 0.79
X-152 0.79 6.0 1.31 3-1/2 Reg 0.79
X-156 0.79 6.13 1.31 3-1/2 Reg 0.79
X-159 0.79 6.25 1.31 3-1/2 Reg 0.79
X-162 0.79 6.25 1.31 3-1/2 Reg 0.79
X-165 0.79 6.5 1.31 3-1/2 Reg 0.79
X-168 1.42 6.63 1.31 4-1/2 FH 0.79
X-171 1.42 6.75 1.31 4-1/2 FH 0.79
X-175 1.42 6.75 1.31 4-1/2 FH 0.79
X-178 1.42 7.0 1.31 4-1/2 FH 0.79
X-181 1.42 7.13 1.31 4-1/2 FH 0.79
X-184 1.42 7.25 1.31 4-1/2 FH 0.79
X-187 1.42 7.37 1.31 4-1/2 FH 0.79
X-191 1.42 7.5 1.31 4-1/2 FH 0.79
X-194 1.42 7.63 1.31 4-1/2 FH 0.79
X-197 1.42 7.75 1.31 4-1/2 FH 0.79
X-200 1.42 7.87 1.31 4-1/2 FH 0.79
X-210 1.42 8.25 1.31 4-1/2 FH 0.79
X-213 1.57 8.37 1.48 5-1/2 FH 0.98
X-216 1.57 8.37 1.48 5-1/2 FH 0.98
You can specify the size of an item on the checkout page.
