Application

FZ-T junk mill is designed to destroy cement all across wellbore cross-section, underream sand plugs and soft metal casing accessories.

Design

The junk mill consits of a body and braze of carbide inserts and crushed tungsten carbide. The flank of the mill is dressed with carbide inserts and durable for metal milling.
It has thread connection at the upper part of the body, and circulation ports and relevant watercourses for better cooling and more efficient removal of cuttings at the lower end.

BITTEKHNIKA, whose policy is one of continuous improvement, reserves the right to discontinue or change designs and specifications without notice or written incurring obligations. Therefore, the below figures are meant to serve as a guide only. Additional sizes are available. For a complete listing, contact us: sales@bittekhnika.ru

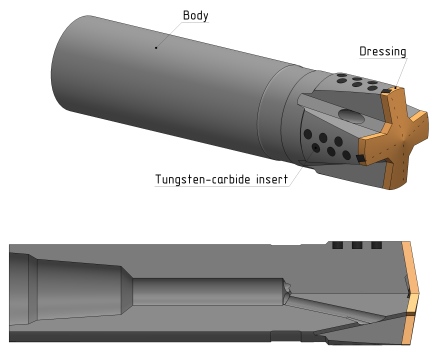

Images and Dimensions
Technical data
To cart Code Watercourse
size, in
OD, in Total length,
ft
Top connection,
compatible with API
Thickness of dressing, in
X-56 0.39 2.2 0.46 З-33 0.59
X-80 0.47 3.17 0.52 2-3/8 Reg 0.79
X-90 0.47 3.54 1.31 2-3/8 Reg 0.79
X-102 0.47 4.02 1.31 2-3/8 Reg 0.79
X-112 0.63 4.41 1.31 2-7/8 Reg 0.79
X-114 0.63 4.5 1.31 2-7/8 Reg 0.79
X-117 0.63 4.5 1.31 2-7/8 Reg 0.79
X-118 0.63 4.65 1.31 2-7/8 Reg 0.79
X-120 0.63 4.72 1.31 2-7/8 Reg 0.79
X-121 0.63 4.75 1.31 2-7/8 Reg 0.79
X-122 0.63 4.81 1.31 2-7/8 Reg 0.79
X-124 0.63 4.87 1.31 2-7/8 Reg 0.79
X-127 0.63 5.0 1.31 2-7/8 Reg 0.79
X-130 0.63 5.13 1.31 2-7/8 Reg 0.79
X-133 0.63 5.25 1.31 2-7/8 Reg 0.79
X-136 0.63 5.37 1.31 3-1/2 Reg 0.79
X-140 0.79 5.5 1.31 3-1/2 Reg 0.79
X-143 0.79 5.63 1.31 3-1/2 Reg 0.79
X-146 0.79 5.75 1.31 3-1/2 Reg 0.79
X-149 0.79 5.87 1.31 3-1/2 Reg 0.79
X-152 0.79 6.0 1.31 3-1/2 Reg 0.79
X-156 0.79 6.13 1.31 3-1/2 Reg 0.79
X-159 0.79 6.25 1.31 3-1/2 Reg 0.79
X-162 0.79 6.25 1.31 3-1/2 Reg 0.79
X-165 0.79 6.5 1.31 3-1/2 Reg 0.79
X-168 1.42 6.63 1.31 4-1/2 FH 0.79
X-171 1.42 6.75 1.31 4-1/2 FH 0.79
X-175 1.42 6.75 1.31 4-1/2 FH 0.79
X-178 1.42 7.0 1.31 4-1/2 FH 0.79
X-181 1.42 7.13 1.31 4-1/2 FH 0.79
X-184 1.42 7.25 1.31 4-1/2 FH 0.79
X-187 1.42 7.37 1.31 4-1/2 FH 0.79
X-191 1.42 7.5 1.31 4-1/2 FH 0.79
X-194 1.42 7.63 1.31 4-1/2 FH 0.79
X-197 1.42 7.75 1.31 4-1/2 FH 0.79
X-200 1.42 7.87 1.31 4-1/2 FH 0.79
X-210 1.42 8.25 1.31 4-1/2 FH 0.79
X-213 1.57 8.37 1.48 5-1/2 FH 0.98
X-216 1.57 8.37 1.48 5-1/2 FH 0.98
X-219 1.57 8.63 1.48 5-1/2 FH 0.98
X-222 1.57 8.75 1.48 5-1/2 FH 0.98
X-225 1.57 8.87 1.48 5-1/2 FH 0.98
X-229 1.57 9.0 1.48 5-1/2 FH 0.98
X-232 1.57 9.13 1.48 5-1/2 FH 0.98
X-235 1.57 9.25 1.48 5-1/2 FH 0.98
X-238 1.57 9.37 1.48 5-1/2 FH 0.98
X-241 1.57 9.5 1.48 5-1/2 FH 0.98
X-245 1.57 9.63 1.48 5-1/2 FH 0.98
X-248 1.57 9.75 1.48 5-1/2 FH 0.98
X-251 1.57 9.87 1.48 5-1/2 FH 0.98
X-254 1.57 10.13 1.48 5-1/2 FH 0.98
X-257 1.57 10.13 1.48 5-1/2 FH 0.98
X-260 1.57 10.25 1.48 5-1/2 FH 0.98
X-264 1.57 10.37 1.48 5-1/2 FH 0.98
X-267 1.57 10.5 1.48 5-1/2 FH 0.98
X-270 1.57 10.63 1.48 5-1/2 FH 0.98
